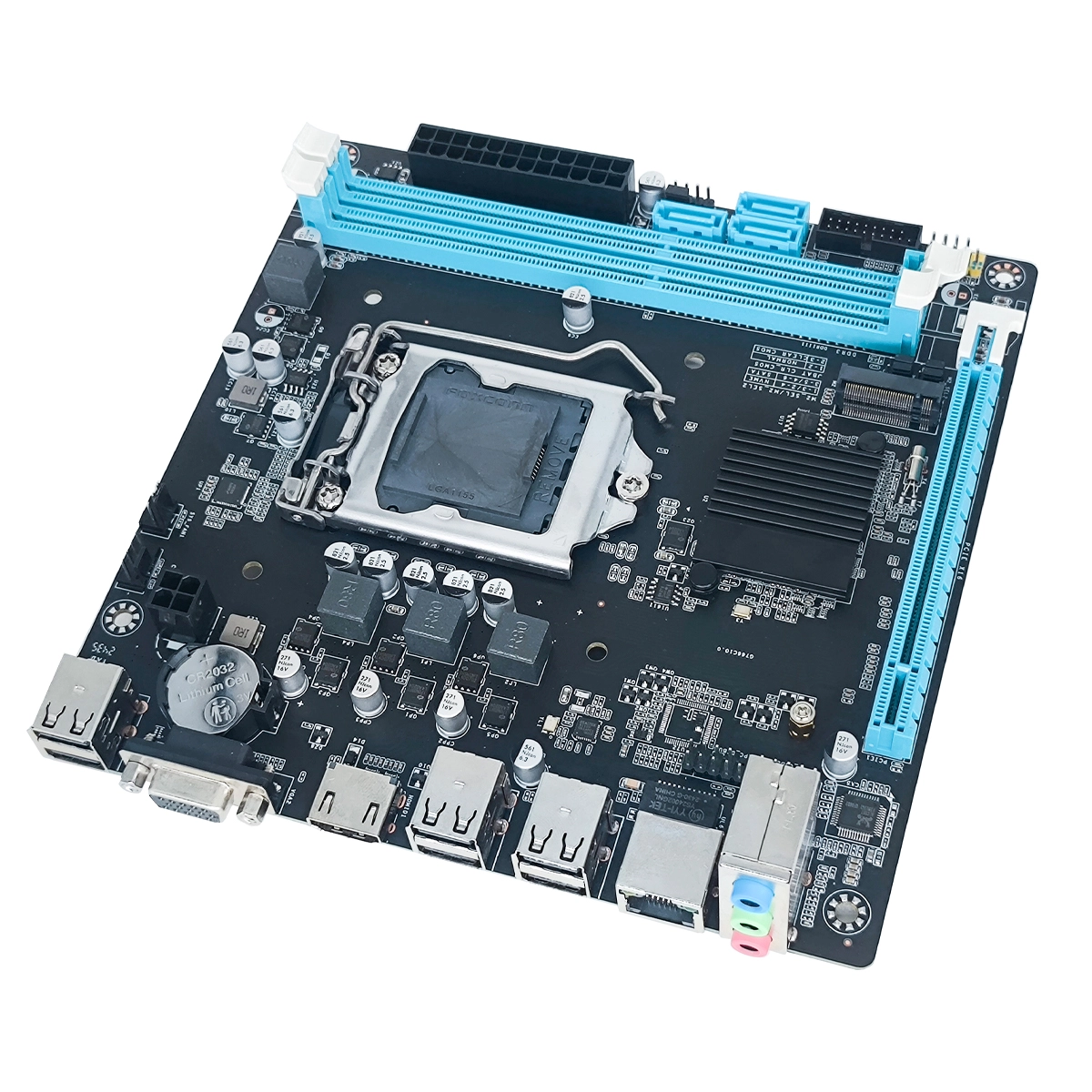

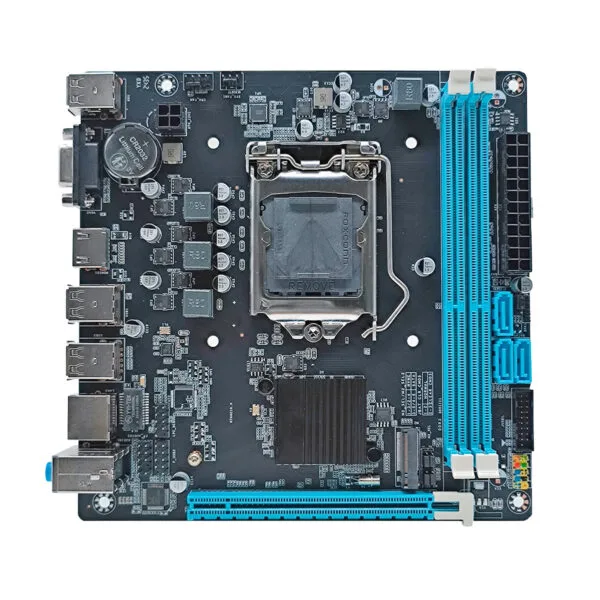

Enter E-H61 LGA 1155 DDR3 Micro ATX Motherboard

Enter E-H61 LGA 1155 DDR3 Micro ATX Motherboard

  • Model: E-H61 LGA 1155
  • Warranty: N/A

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

Add to compare
Add to wishlist
10 People watching this product now!

Description

Specifications:  Details
CPU Supports LGA1155 Socket 13/15/17 series CPU
Chipset Intel H61 Express Chipset
Memory 2*240-pin DDR3 SDRAM Slots, Memory up to 16GB, Supports
dual channel DDR3 1066/1333/1600MHz
I/O Interface
6 x USB 2.0, 1 x VGA port, 1 x HDMI port, 1 x RJ45 port, 1 x 3-in1 Audio Port (line In / Line Out / MIC IN)
Onboard Interface
1 x 24-pin ATX power connector, 1 x 4-pin ATX 12V power connector, 2 x USB connector, can support 4*USB 2.0,
1 x F_AUDIO connector, 1 x F_PANEL connector
1 x SPEAKER connector, 2 x FAN connector
Integrated Sound With 6-channel HD Audio Codec onboard provides front audio
interface; provides front stereo mic interface
Storage 3 x SATA2.0 (3GB/s) ports
Integrated LAN With 10/100 Mbps LAN onboard
Expansion Slot 1 x PCI Express x16 slot, 1 x NVME/NGFF slot
Dimension Micro-ATX architecture (17*17 cm)

Specification

Overview

Processor

Display

RAM

Storage

Video Card

Connectivity

Features

Battery

General

Description

Specifications:  Details
CPU Supports LGA1155 Socket 13/15/17 series CPU
Chipset Intel H61 Express Chipset
Memory 2*240-pin DDR3 SDRAM Slots, Memory up to 16GB, Supports
dual channel DDR3 1066/1333/1600MHz
I/O Interface
6 x USB 2.0, 1 x VGA port, 1 x HDMI port, 1 x RJ45 port, 1 x 3-in1 Audio Port (line In / Line Out / MIC IN)
Onboard Interface
1 x 24-pin ATX power connector, 1 x 4-pin ATX 12V power connector, 2 x USB connector, can support 4*USB 2.0,
1 x F_AUDIO connector, 1 x F_PANEL connector
1 x SPEAKER connector, 2 x FAN connector
Integrated Sound With 6-channel HD Audio Codec onboard provides front audio
interface; provides front stereo mic interface
Storage 3 x SATA2.0 (3GB/s) ports
Integrated LAN With 10/100 Mbps LAN onboard
Expansion Slot 1 x PCI Express x16 slot, 1 x NVME/NGFF slot
Dimension Micro-ATX architecture (17*17 cm)
